VECTRA

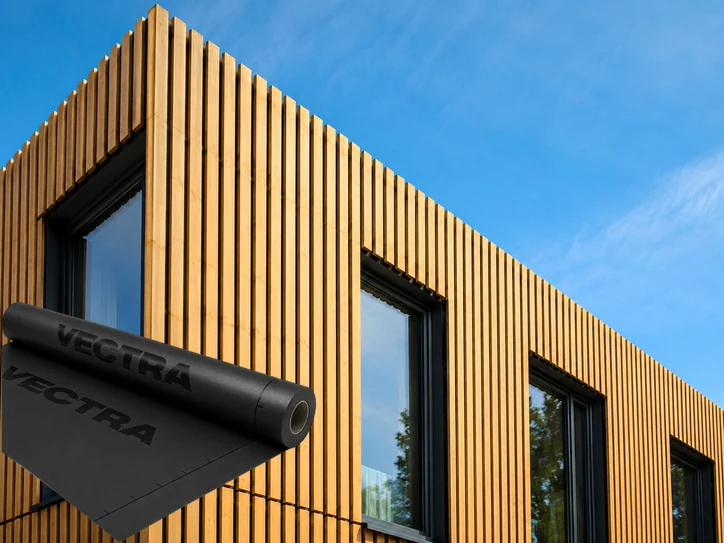

IZOTEX® VECTRA is a UV-resistant, vapour-permeable façade membrane for ventilated façade systems with open joints. It helps protect the façade construction and insulation layer against wind, rain and external moisture. Thanks to its high water vapour permeability, moisture can escape from the building envelope to the outside. Its lightweight yet durable structure makes VECTRA a suitable solution for modern open-joint façade constructions.
- Developed for ventilated façade systems with open joints
- High UV resistance for long-term exposure behind open joints
- Reliable protection against wind and driving rain
- Highly vapour-permeable structure for effective moisture management
Technical information
Overview of the key technical properties and performance values of IZOTEX® VECTRA.
| Product Name | IZOTEX® VECTRA / UV-resistant façade membrane |
| Composition | Multi-layer synthetic membrane |
| Roll Width | 150 cm |
| Roll Length | 50 m |
| Mass per Unit Area | 210 g/m² |
| Reaction to Fire | Class B-s1,d0 |
| Sd Value | 0.04 m |
| Air Permeability | < 0.03 m³/(m²·h·50 Pa) |
| Watertightness Class | W1 |
| Color | Black |
| Working Temperature | -10 °C / +50 °C |
| Storage | Can be stored for 12 months at +15 °C to +25 °C in a dry environment, away from direct sunlight. |
What we offer
UV-resistant, vapour-permeable and fire-classified façade membrane for open-joint ventilated façades.
For Open Façade Joints
Specially developed for ventilated façade constructions with open joints.
Vapour-Permeable
Allows moisture to escape from the construction to the outside.
Windtight
Reduces uncontrolled air movement within the exterior wall construction.
Watertightness Class W1
Protects the insulation layer against rain and external moisture.
Low sd Value
sd value of 0.04 m – supports moisture release to the outside.
High Mechanical Strength
Durable structure for secure installation and handling.
High UV Resistance
Suitable for use behind open façade joints.
Easy Installation
Lightweight and flexible structure for fast application.
Frequently asked questions
Everything you need to know about IZOTEX VECTRA – quickly and clearly.
