JOINEX FR

IZOTEX® JOINEX FR is a flame-retardant seam tape for the secure bonding and sealing of overlaps and seam areas in façade membranes. It creates a permanent, airtight and watertight connection between the membrane sheets.

  • Secures overlaps and seam areas of façade membranes
  • Creates an airtight and watertight connection
  • High UV resistance and weather-resistant sealing
  • Flame-retardant for increased safety in the façade system

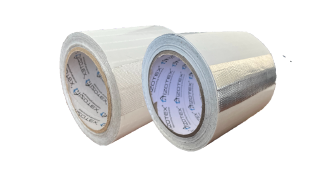

IZOTEX JOINEX FR IZOTEX JOINEX FR  ürün rulosu
Roll Length
10 m
Roll Width
10–20 cm
Thickness
0.4 mm
Reaction to Fire
B1
Function
Airtight & watertight
Product data

Technical information

Overview of the key technical properties and variants of IZOTEX® JOINEX FR.

Product Name
IZOTEX® JOINEX / Flame-retardant seam tape for façade membranes
Variants
JOINEX A / JOINEX G
General product information
Product Name
JOINEX A
JOINEX A
JOINEX G
JOINEX G
Material Structure
JOINEX A
Aluminium / A / G / A / P
JOINEX G
Fibreglass / A / AL / A / P
Roll Length
JOINEX A
10 m
JOINEX G
10 m
Roll Width
JOINEX A
10–20 cm
JOINEX G
10–20 cm
Thickness
JOINEX A
0,4 mm
JOINEX G
0,4 mm
Reaction to Fire
JOINEX A
B1
JOINEX G
B1
Airtightness
JOINEX A
Yes
JOINEX G
Yes
Water Resistance
JOINEX A
Very good
JOINEX G
Very good
UV Resistance
JOINEX A
Very good
JOINEX G
Very good
Application Temperature

+10 °C to +50 °C

Storage

Can be stored for 12 months at +15 °C to +25 °C in a cool, dry place. Protect from direct sunlight.

Advantages

What we offer

Flame-retardant seam tape for airtight and watertight connections between façade membranes.

Flame-Retardant

Reaction to fire class B1 for increased safety in the façade system.

Airtight

Creates an airtight connection between the membrane sheets.

Watertight

Reliably seals overlaps against water ingress.

High UV Resistance

Offers very good resistance to UV exposure during the construction phase.

Strong Adhesion

Bonds securely to suitable façade membranes and connection areas.

High Mechanical Strength

The multi-layer structure provides stability and a durable connection.

Two Variants

Available as JOINEX A with an aluminium surface and JOINEX G with a fibreglass carrier.

For Overlaps

Developed for seam areas and overlaps in façade membranes.

FAQ

Frequently asked questions

Everything you need to know about IZOTEX JOINEX FR – quickly and clearly.

Have another question?

Our technical team is happy to provide you with personal advice.
